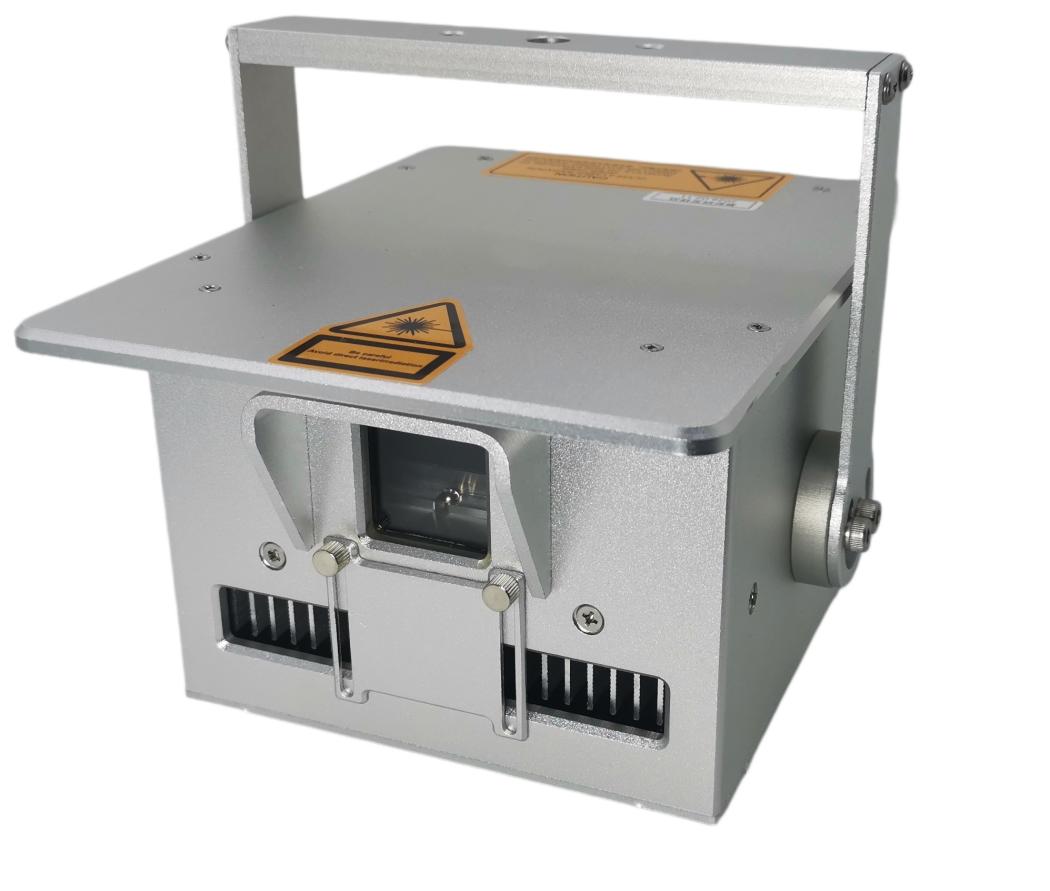

Highway RGB Anti-Fatigue Laser Beacon CET-RGB12W
Short Description:
Key Features
12W RGB Laser Output
The CET-RGB12W uses synthetic RGB laser light composed of red, green, and blue colors, providing strong visibility and flexible color combinations for highway traffic safety applications.
Long Projection Distance
With a projection distance of 5,000–7,000 meters under suitable conditions, the laser beacon is suitable for long-distance road visual guidance and warning applications.
Multiple Lighting Modes
The system supports steady-on mode, strobe mode, RGB flashing, RGB fade, color cycle modes, and automatic running programs to meet different traffic management requirements.
DMX512 Programming Support
The CET-RGB12W supports DMX512 programming, allowing flexible control and synchronization for professional traffic safety and lighting projects.
Master-Slave Control Mode
Each unit can operate independently, and multiple units can also be connected in master-slave mode for synchronized operation across highway sections.
IP67 Outdoor Protection
The housing provides IP67 water and dust resistance, making it suitable for outdoor highway environments, rainy conditions, and dusty roadside installations.
Wide Working Temperature Range
The beacon operates reliably in temperatures from -40°C to +60°C, suitable for demanding outdoor traffic environments.
Durable Aluminum Alloy Housing
The body is made of 6061 aluminum alloy, offering strong durability, corrosion resistance, and reliable mechanical protection.
Adjustable Installation Angle
The installation angle can be adjusted up and down from 0° to 35°, allowing flexible alignment according to road conditions and project requirements.
Multiple Safety Protection Functions
The system includes overvoltage protection, overcurrent protection, and earth leakage protection to improve operating reliability.
Technical Specifications
| Item | Specification |
|---|---|
| Product Name | Highway RGB Anti-Fatigue Laser Beacon |
| Product Model | CET-RGB12W |
| Laser Power | 12W |
| Power Consumption | 70W |
| Laser Color | RGB synthetic light: red, green, and blue |
| Laser Wavelength | Red: 638 nm; Green: 532 nm; Blue: 445 nm |
| Laser Spot | Diameter: 4 mm; Divergence Angle: 3 mrad |
| Working Voltage | AC100–240V |
| Safety Classification | Class 4 |
| IP Rating | IP67 water and dust resistance |
| Protection Functions | Overvoltage protection, overcurrent protection, earth leakage protection |
| Cooling Method | Forced air cooling |
| Heat Dissipation | Independent cooling module |
| Working Temperature | -40°C to +60°C |
| Service Life | 20,000 hours |
| Projection Distance | 5,000–7,000 meters |
| Light Decay | Total light decay over 10,000 hours <5% |
| Installation Angle | Adjustable from 0° to 35° |
| Lamp Size | 230 × 180 × 140 mm |
| Color Selection | Supports separate selection of red, green, and blue |
| Master-Slave Mode | Supported; each unit can also operate independently |
| Strobe Mode | Supports always-on and strobe mode |
| DMX512 | Supported |
| Body Material | 6061 aluminum alloy |
| Weight | 5.5 kg |
| Package | Carton |
| Installation Method | Lifting or bracket installation |
Product Detail
The Enviko CET-RGB12W Highway RGB Anti-Fatigue Laser Beacon is designed for highway traffic safety, night driving guidance, and driver alert applications. With a high-performance RGB laser source, long projection distance, rugged IP67 housing, and multiple programmable lighting modes, it provides strong visual guidance for highways, bridges, tunnels, toll roads, scenic roads, and accident-prone road sections.
The beacon supports red, green, blue, and mixed RGB light effects, including steady-on, flashing, alternating flash, fade, and automatic cycle modes. It can operate independently or work in a master-slave system, making it suitable for single-point installation or multi-unit highway deployment.
